产品型号 |
WPT2.5-2-GY | ||
|

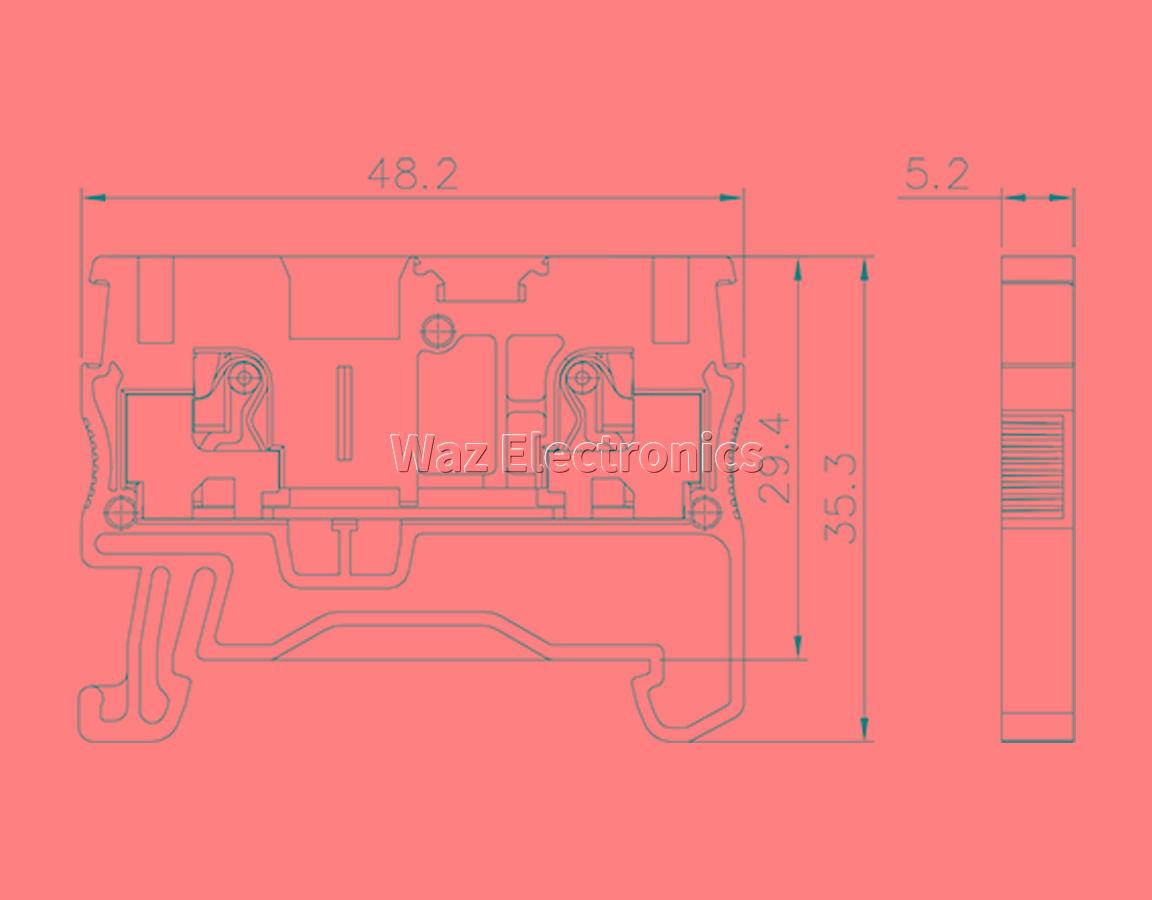

宽度 Width |
5.2mm | ||
|
产品层数 Number of levels |
1 | ||
|
接线位数 Number of connections |
2 | ||
|
接线方式 Connection method |
直插弹簧接线 | ||
|
防护等级 Protection Level |
IP20 | ||
|
工作温度 Work temperature |
-40~+105℃ | ||
|
额定电流 Rated Current |
24A |
|
额定电压 Rated Voltage |
800V |
|
过压类别 Overvoltage category |
Ⅲ |
|
污染等级 Pollution degree |
3 |
|
额定冲击电压 Rated impulse voltage |
8KV |
|
刚性导线截面积 Conductor cross section solid |
0.2-4mm² |
|
柔性导线截面积 Conductor cross section flexible |
0.2-2.5mm² |
|
柔性导线截面积，带绝缘管套 Conductor cross section flexible,with furrule |
0.2-2.5mm² |
|
剥线长度 Stripping length |
8-10mm |
